BR Series hydraulic diaphragm grab is the special device, which can be used to construct the Diaphragm Wall, such as the pit surround protection, the waterproof wall of the dam and the dock. The products are suitable for constructions in subway and municipal foundation, also in quadrate pile. The product features advanced technology, excellent performance, reliable quality, and easy handling.

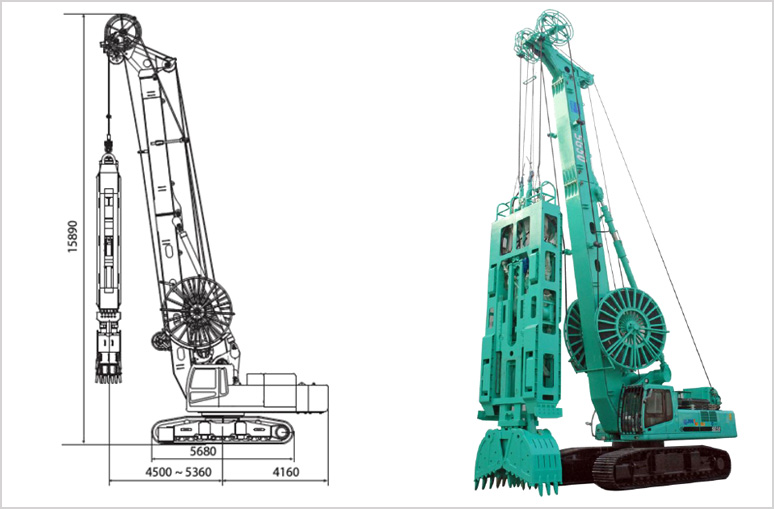

| Description Model | BR35C (unit: mm) | BR46 (unit: mm) | BR60 (unit: mm) | |
|---|---|---|---|---|
| Mast height | A | 15550 | 15890 | 18260 |
| Grab in highest position | B | 14100 | 14450 | 14300 |
| Overall crawler length | C | 5360 | 5680 | 6020 |
| Center line of grab to swing axis | D | 3450-4810 | 4500-5316 | 4100-5620 |
Specifications
| Model | BR35C | BR46 | BR60 |
|---|---|---|---|
| Wall width (m) | 0.3-1.0 | 0.35~1.2 | 0.35-1.5 |
| Wall depth (m) | 50 | 75 | 100 |
| Lifting force (kN) | 350 | 460 | 600 |
| Weight of grab (t) | 9~18 | 15~22 | 15~30 |
| Diesel | Cummins C8.3-C | Cummins QSM11-C | Cummins QSM11-C |
| Rated engine output (kW) | 196@ | 263 | 298 |
| Up-carriage | Hyundai R305LC-9 | Hyundai R455LC-7/ | Hyundai R445LC-7 |
| Undercarriage | JT70 | JT80 | JT90 |
| Total weight (w/o grab) (t) | 58 | 69 | 92.1 |
