BRCF150SDF truck mounted directional & reverse drilling rig
BRCF150SDF truck mounted drilling rig is turntable rotary drilling rig; it is equipped Dongfeng chassis with 4X2 drive. Transfer case, main drive system, gearbox, all hydraulic double- winch unit, mud pump, turntable, drilling tower, steel wire feed mechanism are assembled on the chassis. Three phase alternator is installed for night light, welding, maintenance and repair. This rig can be added 50KW electric motor and if electricity is convenient, it can us external power directly. The rig has direct-reversed circulation pump sets and normal & reverse circulation drilling is implemented by switching mud pump and sewage pump. BRCF150SDF truck mounted drilling rig looks pretty and spiffy, with large torque, fast drilled footage uses for deep well, construction building, bridge foundation, oil field casing, high voltage line piling, wind power piling, geology mine, port and dock, dam foundation, etc. BRCF-150SDF truck mounted drilling rig is approbatory in domestic and overseas.
Technical Parameters
Drilling Depth (M) 50 150
Drilling Diameter (mm) 500 1500
The Capacity of Main Windlass (KN) 120
The Capacity of Auxilary Windlass (KN) 150
The Height of mast (mm) 9090

Drill Pipe

Kelly Bar (mm) 182 x 182 x 5000
Assistant Pipe (mm) 168 x 8 x 3000
Chassis Engine Model YC4E140-30
Rated Power (kw) 105
Drive Form 4 x 2
WB850/40-80 PlungerPump Theory of Flow (m3/h)) 280
Delivery Lift (m) 18
The Highest Speed (km/h) 50
Weight (kg) 13740
Transport Size (L* W * H) (mm) 9415 x2660x 3362
Working Size (L* W * H) (mm) 9415 x2660x 3362

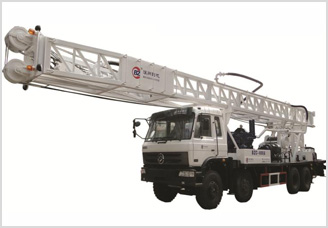

BRC600CLCA truck mounted drilling rig
BRC600CLCA truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig; The truck chassis adopts the special crane chassis of brand CHANA TRUCK & the main drivesystem, the transfer case, gearbox, double-winch unit, mud pump, turntable; drilling tower, feed mechanism are set up on the chassis; This rig is a rotary drilling rig with directional circulation. It is equipped with WB850/4-80 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable & is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well & other foundation working; It is popular at home & abroad.
Technical Parameters
Drilling Depth (M) 600
Drilling Diameter (mm) 500
The Capacity of Main Windlass (KN) 300
The Capacity of Auxilary Windlass (KN) 240
The Height of mast (mm) 15000

Drill Pipe

Kelly Bar (mm) 108 x 108 10500
Assistant Pipe (mm) 89 x 10 x 9000
Chassis Engine Model YC6A260-33YC
Rated Power (kw) 191
Drive Form 8 x 6
WB850/40-80 PlungerPump Theory of Flow (L/min) 500 600 700 850
Rated Pressure (Mpa) 7 6 5 4
The Highest Speed (km/h) 75
Weight (kg) 27500
Transport Size (L* W * H) (mm) 15543 x 2480 x 4032
Working Size (L* W * H) (mm) 11139 x 2480 x 16749
